Single-Acting Hydraulic Cylinders: Types, Advantages, and How to Choose

Expanded revision of the article originally published in 2020. Six years later, I rewrote this text — more complete, more detailed, and this time with a clear recommendation on which model to choose in each situation.

1. What a single-acting cylinder is — and isn't

A single-acting cylinder uses hydraulic force in a single direction. The return stroke, in the opposite direction, is performed by an action external to the cylinder — the weight of the equipment itself, a spring, or compressed air. Which of the two movements is the "power" stroke (extension or retraction) is a design decision made at the equipment level, not a fixed characteristic of the hydraulic cylinder.

Here's the most common misunderstanding, worth correcting right away: "single" doesn't mean "cheaper" or "simpler inside." In many cases, the internal construction of a single-acting cylinder is as elaborate as, or more elaborate than, that of a double-acting one — the term refers only to using hydraulic pressure in one direction, not to the cylinder's complexity. Treating single-acting as the "economy version" of double-acting is a specification mistake.

What it really is: an engineering choice. When the application already provides the return force — gravity, load, or spring — you trade the pressurized return for fewer components, simpler hydraulic control, and a smaller reservoir. Also explore our custom Single and Double-Acting Cylinders. It's a deliberate trade-off. The rest of this article covers when it pays off and which of the three constructions to use.

2. How the cylinder returns, and why that's the first decision

Before choosing the cylinder type, there's a decision that comes first: how it will return. Since hydraulic force acts in only one direction, the return depends entirely on something external, and there are three paths.

Gravity. The simplest and most robust: the weight of the equipment itself pushes the rod back when pressure is released. There's no additional part to fail. It works well when the cylinder operates vertically or at an angle sufficient for the load to guarantee the return — dump beds, platforms, agricultural implements. Take away the favorable angle and you take away the method's reliability.

Spring, internal or external. When the mounting is horizontal or at an angle that doesn't favor gravity, the spring provides the return force regardless of position. The internal spring is compact and protected, but takes up space inside the cylinder, consumes part of the extension force, and limits stroke length. The external spring is easier to inspect and replace and allows more stroke freedom, but is exposed to the environment. In both cases, the spring is a fatigue component: it has a service life and must be part of the maintenance plan.

Compressed air. In models with an air chamber (covered next), it's possible to lightly pressurize that side to assist the return. This solves the problem when there's no gravity or room for a spring, but requires a pneumatic source and one more circuit to maintain — a system rarely used.

The point that's easy to miss: the return method isn't a finishing detail — it's what, in practice, determines which of the three constructions below makes sense. Decide first how the cylinder will return, and half the specification is already settled.

3. Mounting and fixation

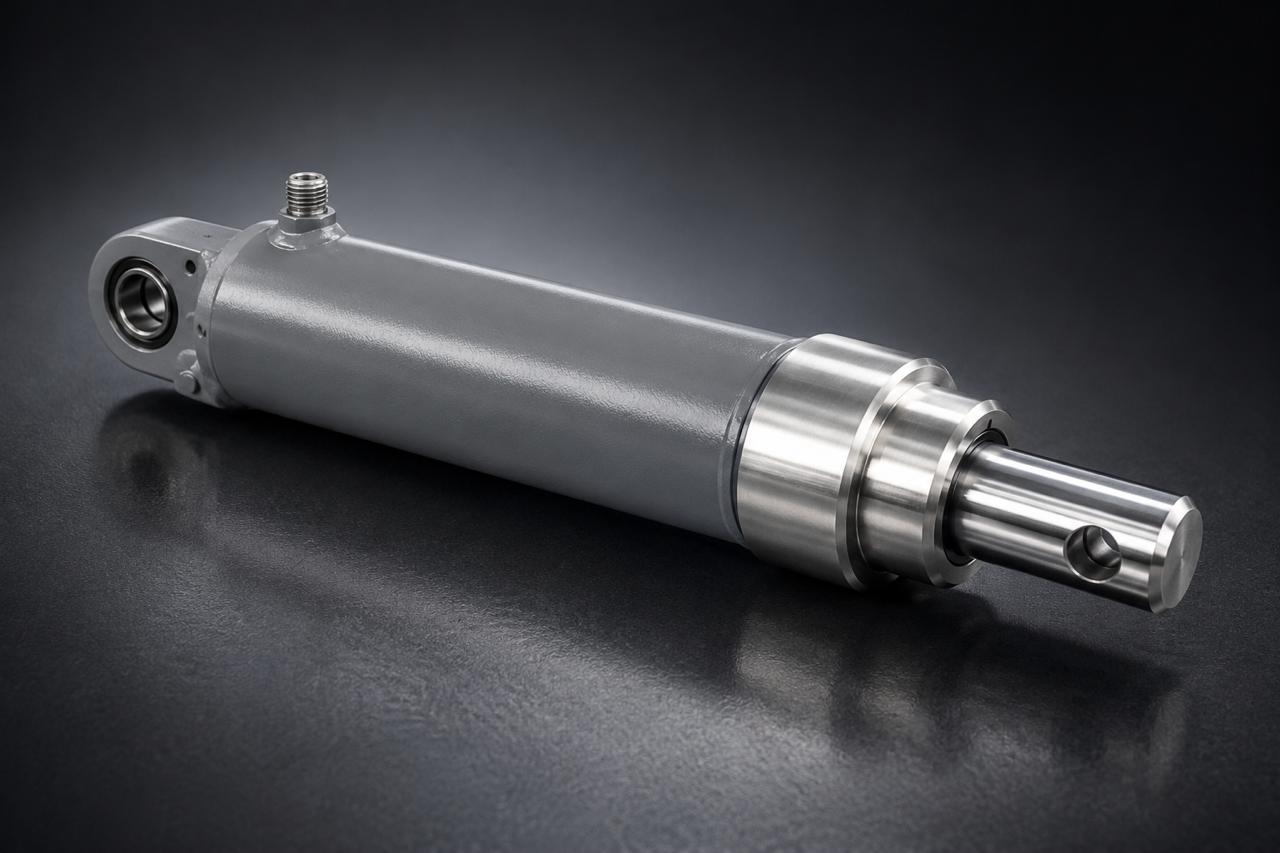

Fixation follows the mounting needs of the equipment, and the options are well known: round eye ends with pins; single or double clevises, also with pins; front or rear flanges, bolted; center or front trunnion mounting; or any arrangement the design requires, including drilling directly into the rod itself.

Worth noting: fixation isn't an aesthetic choice — it defines how the cylinder absorbs misalignment and side loads. An articulated eye end or a trunnion mount lets the cylinder follow the load's angular movement without fighting it; a rigid mount in the wrong place transfers side load to the rod, and side load on the rod is the shortest path to premature seal wear and bending — a topic we return to in the next section. Correct fixation is what keeps the effort aligned with the cylinder's axis, which is where it's designed to work.

4. The three construction types, and what changes between them

The single-acting hydraulic cylinder is divided, according to what is done with the chamber that doesn't receive pressure, into three constructions: Oil-over-Air, Oil-over-Oil (the Buzo system), and Ram. The difference seems like a detail, but it's what determines service life, extension force, and maintenance cost. This is where the specification gets it right — or wrong.

4.1 Oil-over-Air

Oil is pressurized on one side, and the piston, with a complete seal, moves the rod and delivers the force. On the other side there's only air. As the piston advances, that air would tend to compress and fight the movement, which is why a small hole is opened in the tube wall — the breather — that lets air freely enter and exit. The cap seal on that side is simpler, since there's no hydraulic pressure there: it mainly serves to keep out dirt and guide the rod.

The breather hole is this type's trademark — and its Achilles' heel. It's an opening to the atmosphere, and through it come moisture and contaminants, which condense and corrode exactly the internal wall exposed to air. In exchange, with no counter-pressure on the other side, this is the type that delivers the highest extension force for a given diameter: the entire tube area works.

What separates the practical Oil-over-Air models isn't the principle — it's what's done with the breather. There are three approaches, each with a different level of protection and complexity.

4.1.1 Open breather

The most direct solution: a simple hole in the tube wall that lets the air in the front chamber communicate freely with the atmosphere. It works with no additional component, doesn't obstruct, and doesn't fail on its own — but it also doesn't filter anything. In clean, dry environments, it does the job without complications. In humid, dirty environments, or on equipment exposed to washing, this hole is a direct path to internal corrosion, seal contamination, and reduced service life. Periodic inspection of the breather is mandatory: a clogged hole compresses the air in the front chamber, slows the extension stroke, and signals the problem with a gradual loss of force before it locks up.

When it makes sense: applications in a clean, dry, controlled environment, where minimum cost and simple maintenance matter more than protection against moisture.

4.1.2 Sintered bronze breather

A direct evolution of the open version: the breather hole receives a porous sintered bronze element that acts as a filter. Air continues to freely enter and exit, the chamber doesn't compress, but solid particles and water droplets are retained by the porous material before reaching the inside of the tube.

The protection is real, but it has limits. Sintered bronze blocks liquid water and coarse particles, but doesn't eliminate moisture in the form of vapor. With thermal cycling, the vapor that enters condenses on the cold wall and produces the same internal corrosion, more slowly, but through the same mechanism. It's a mitigation solution, not an elimination one. The sintered element also requires attention: clogged with mud or fine dust, it starts behaving like an obstructed breather.

When it makes sense: environments with dust and occasional exposure to water, where the open breather would be problematic but the maximum protection of the closed chamber isn't justified by the application or cycle frequency.

4.1.3 Closed chamber with internal rod valve

This is the most complete approach for Oil-over-Air. Instead of managing what comes in through the breather, it eliminates the breather entirely: the front chamber remains permanently closed to the atmosphere.

What makes this possible is a check valve installed internally in the rod. It keeps the chamber closed throughout the extension stroke, without generating relevant counter-pressure to the movement. When oil passes by the piston — something any seal can develop over its service life — that oil accumulates in the front chamber. When it reaches the end of stroke, the piston pushes that oil against the valve, which opens and allows full return to the pressurized side and, from there, to the reservoir. The chamber ends each cycle completely clean, with no oil buildup and no risk of hydraulic lock.

The result is twofold: the front chamber stays protected from any contact with the atmosphere, eliminating moisture ingress and internal corrosion from condensation, and the cap seal becomes complete, with the same set of seals as a double-acting cylinder.

When it makes sense: applications in humid environments, with intense exposure or long cycles, where service life and internal protection justify the more elaborate design, and where the open or sintered breather doesn't solve the underlying problem.

Advantages of the Oil-over-Air type (general)

• Simple 2-way hydraulic control
• Fewer hoses and fittings than a double-acting cylinder
• Smaller oil reservoir
• Maximum extension force — the entire tube area is used

Disadvantages (vary by subvariant)

• Open breather: direct exposure to moisture and contaminants; requires periodic inspection
• Sintered bronze: improves protection but doesn't eliminate internal condensation; the element can clog
• Closed chamber: more elaborate design, with an internal rod component and specific machining; higher cost

4.2 Oil-over-Oil — the Buzo system

Here the entire interior stays bathed in oil, in both chambers. Since everything is filled with pressurized oil, the cap seal must be complete — it can't leak to the outside. The piston, in this system, isn't a seal: it's a guide or an end-of-stroke stop with a diameter smaller than the tube's bore, so oil flows freely between the two chambers. In longer cylinders, guides on the piston keep the rod from buckling and prevent metal-to-metal contact with the tube.

Worth a comment on buckling: the longer the stroke and the more slender the rod, the greater the risk of it buckling under load. A rod of adequate diameter and internal guides aren't a luxury in this case — they're structural. Buckling isn't a maintenance issue, it's a sudden failure.

And here's the physics the 2020 article only touched on lightly: filling both chambers with oil has a cost. The front chamber, also full of oil, pushes back against extension. The resulting force is the hydraulic pressure force on the piston minus the force exerted on the annulus — the ring-shaped area between the rod and the tube. What's left scales with the rod's area. That's why the larger the rod diameter, the smaller the annulus, and the smaller the loss. Take that to the limit — a rod nearly the diameter of the tube — and the loss practically disappears. That limit is exactly the Ram model, right below. In other words: the Buzo's "slightly lower force" is real, but it's a design knob (the rod diameter), not a fixed penalty. That's why the Buzo typically uses a thick rod — it solves three things at once: less annulus loss, more buckling resistance, and a faster return.

Advantages

• Interior fully bathed in oil, virtually no internal oxidation
• Greater robustness and service life, with low maintenance
• Larger-diameter rod gives rigidity and a faster return

Disadvantages

• Slightly lower extension force (annulus counter-pressure), controllable via rod diameter
• Somewhat higher cost, especially with a large-diameter rod
• The cap seal must be complete and well executed, since there's now pressurized oil there

4.3 Ram

The Ram is the Buzo taken to the extreme: it does away with the rear piston altogether. The rod has a chrome-plated diameter very close to the tube's bore and, in practice, becomes the working element itself. End of stroke is set by a ring fixed to the rod, by a mechanical restriction of the equipment itself, or, in some versions, by nothing at all: the stroke is limited by the assembly. The seal exists only at the front cap, and there's a sealed variant with no provision for later maintenance.

Since the rod nearly fills the tube, the annulus loss is minimal: the Ram recovers almost all of the extension force while keeping the protection of an oil-bathed interior. It's the simplest and most robust of the three, with the fewest internal parts. What's traded away is flexibility — it relies on gravity return, so it requires a favorable mounting orientation, and the sealed version is a "replace, don't repair" component.

Advantages

• Highest extension force among oil-bathed types (minimal annulus)
• Robust, simple construction, few internal parts
• Interior protected by oil, with good service life; sealed version requires no maintenance
• Excellent for lifting and jacks with gravity return

Disadvantages

• Depends on gravity/weight return, with little orientation flexibility
• Large-diameter rod makes the part heavier and, at larger diameters, more expensive
• Sealed version can't be serviced: if it fails, it's replaced
• Cruder end-of-stroke control (ring, stop, or equipment restriction), unless cushioning is engineered in

All three start from the same principle and diverge on a single decision: what's done with the second chamber — air, oil with a piston, or no piston. That choice cascades into force, service life, and maintenance.

5. Storage and field failures

Failures of a single-acting cylinder are predictable. Almost all trace back to one of three origins: contamination that got in, chrome that got damaged, or a rod that operated under side load. The useful part, for whoever maintains the equipment, is that the symptom almost always gives away the cause.

• Oil appearing at the front cap or the breather: worn piston seal. In Oil-over-Air, this is usually a consequence of internal corrosion fed by moisture that entered through the breather. Open it, inspect the tube wall, and address the source — the breather — not just the seal.
• Oil on the outside of the rod, in the Buzo model: a sign that the cap seal has been compromised, and since there's pressurized oil there, it's an external leak. It needs to be opened and inspected — for hard chrome damage or seal damage.
• Loss of stroke or force, in Oil-over-Air: obstructed breather. The air can't escape, compresses, and slows the extension. Often it's just a matter of cleaning the breather — cheap, if caught early.
• Jerky, irregular movement, or marks on the chrome: side load on the rod, usually from inadequate fixation (section 3) or an undersized rod for the stroke (buckling). This is the type of failure that comes back if you replace the seal without correcting the mounting.
• Scratches and dents on the chrome: almost always originate outside the equipment, during handling and storage. The seal then runs over a damaged surface and wears out quickly. Preventing costs less than re-chroming.

Storage that preserves service life

A cylinder is more vulnerable when it's idle. Recommended practice:

• An unobstructed, moisture-free location, with the rod extended and the interior topped up with oil — that way there's no dry internal surface or condensation cycles corroding the tube and compromising seals.
• Protect the chrome from impacts whenever the cylinder is open and off the equipment.
• Keep oil ports and breathers with protective caps until the hoses are installed.
• Once in service, periodically inspect the chrome's integrity and check for oil at the front, an indication of internal leakage.

Most of these failures aren't a defect in the cylinder — they're a specification or handling decision made earlier.

6. How to choose

The decision starts before the cylinder: it starts with how it will return and what environment it will work in. These two factors eliminate options faster than any force calculation.

The rule of thumb

• Oil-over-Air, open breather: when the environment is clean and dry, cost matters, you need the highest possible force per diameter, and you accept periodic breather maintenance. It's also the only subvariant that allows a compressed-air-assisted return, useful when there's no gravity or room for a spring.
• Oil-over-Air, sintered breather: when the environment has dust or occasional water exposure and the open breather would be problematic, but the application doesn't justify a closed-chamber design. Requires attention to the sintered element, which can clog.
• Oil-over-Air, with internal valve: when the environment is humid or contaminated and service life matters more than initial cost, but the application still calls for the maximum extension force that the Oil-over-Air type offers. It's the subvariant closest to the Buzo in terms of internal protection, with the advantage of keeping the full tube area at work.
• Buzo: when service life and low maintenance matter more than initial cost, in humid, contaminated, or prolonged-exposure environments, and in long strokes that call for robustness. The slightly lower force is recovered by thickening the rod.
• Ram: when the application is lifting with gravity or spring return, and you want high force, oil protection, and the simplest, most robust construction possible, accepting a component with little to no maintenance.

The most expensive mistake is choosing based on the price of the isolated part. An Oil-over-Air with an open breather specified for a humid, heavy-duty environment saves on the purchase and gives back the difference in corrosion, seal replacement, and equipment downtime. In a single-acting cylinder, the cost that counts is the cost of keeping the equipment running, not the price on the invoice.

7. Closing

The single-acting hydraulic cylinder carries a misleading name. It's not the cheapest cylinder, nor the simplest by definition — it's the cylinder that uses force in only one direction because the application already provides the return. From there on, everything is a choice: how it returns, what environment it works in, and what's done with the second chamber. That last decision — air, oil with a piston, or no piston — separates the three types and determines force, service life, and maintenance.

Six years after the first article, what I'd add in one sentence is this: specify backwards. Start with the return and the environment, not the price of the part. The right cylinder is the one that keeps the equipment running with the least intervention possible, and that's almost never the cheapest one in the quote.

At INCOCIL we manufacture all three types to order, sizing the rod, seal, and fixation for the real application. If you're specifying a single-acting hydraulic cylinder and want to discuss which construction makes sense for your equipment, talk to our engineering team.
